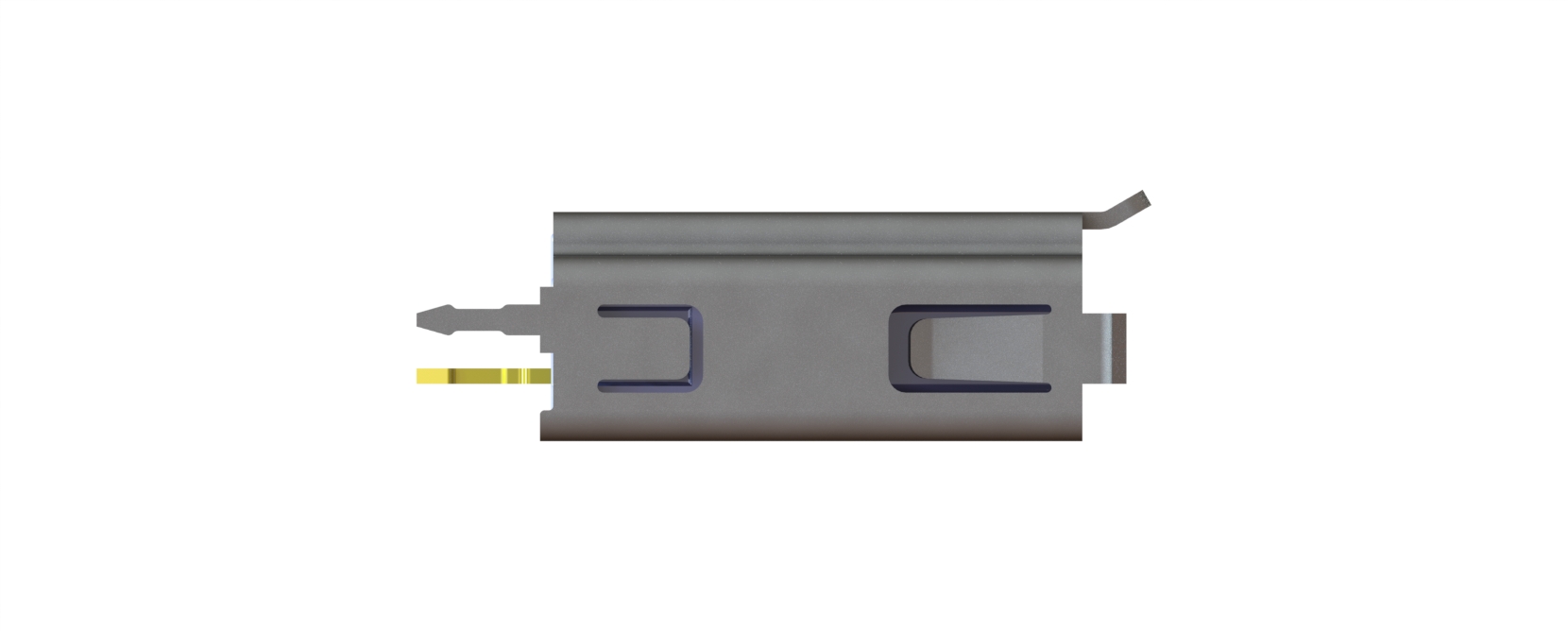

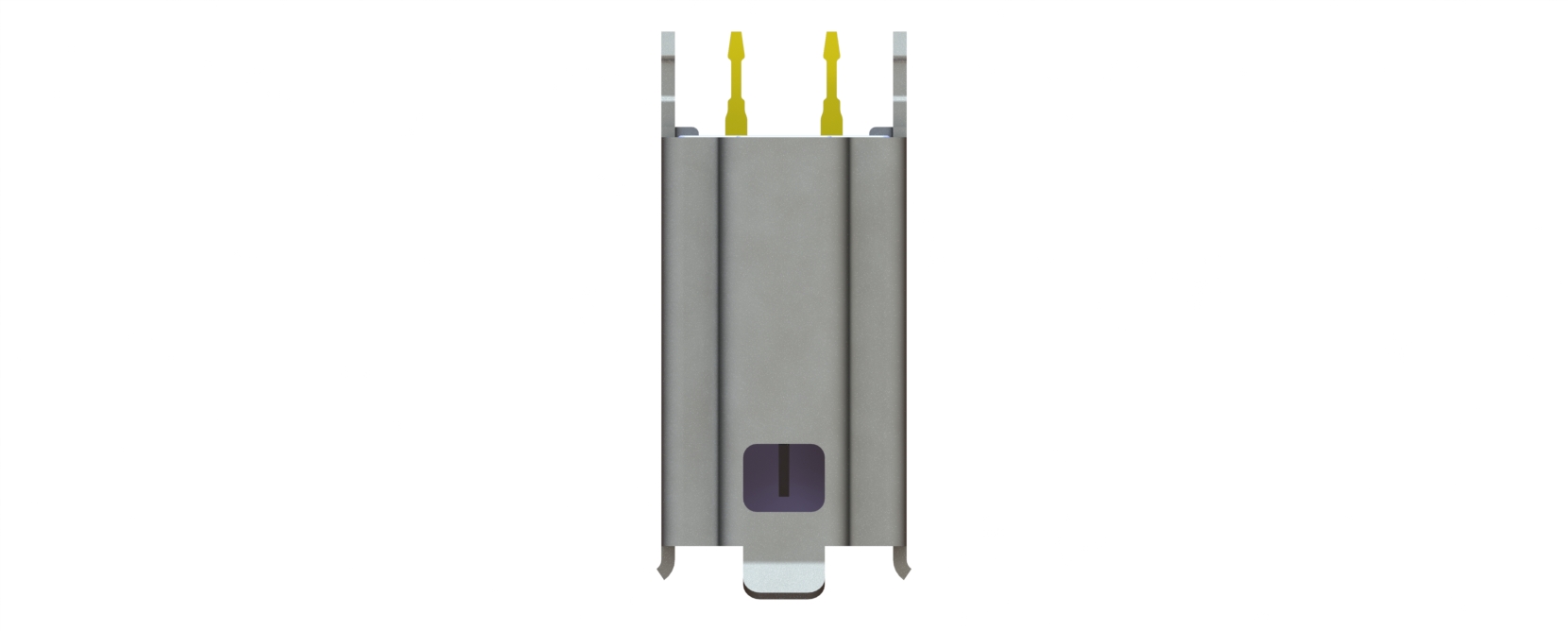

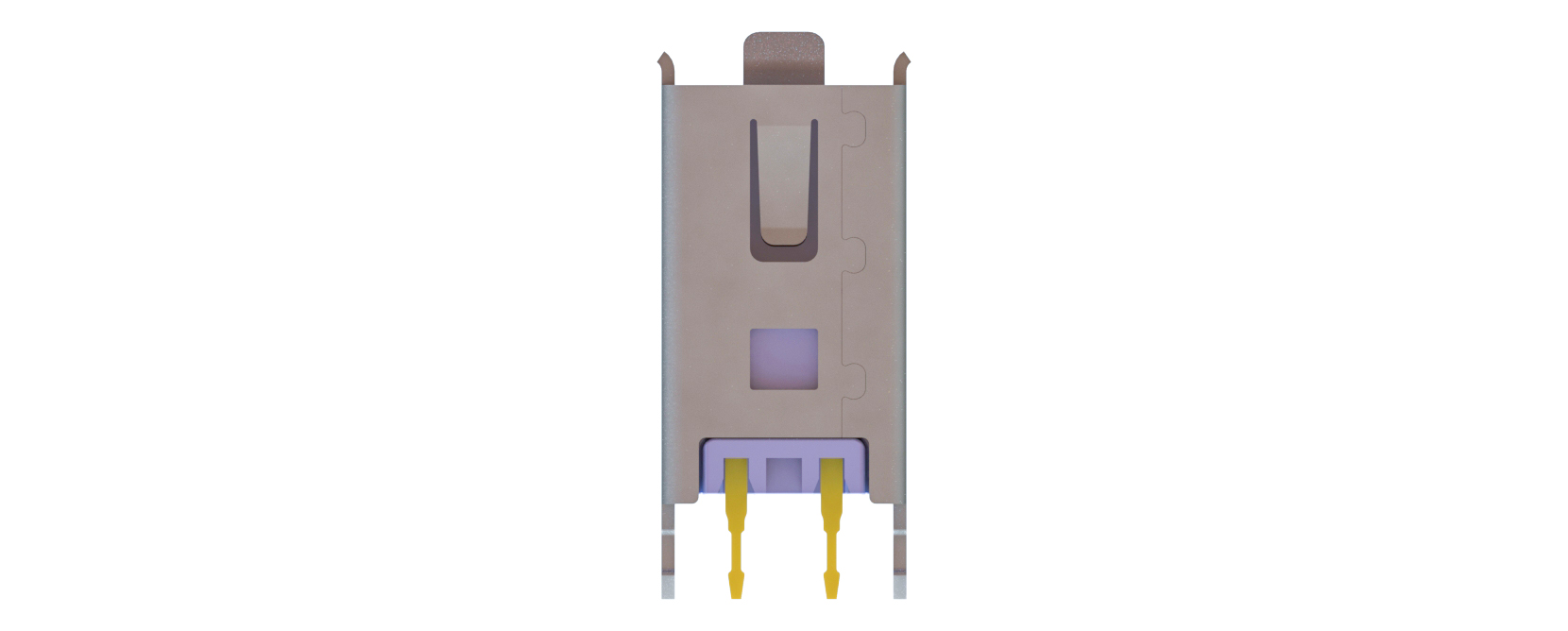

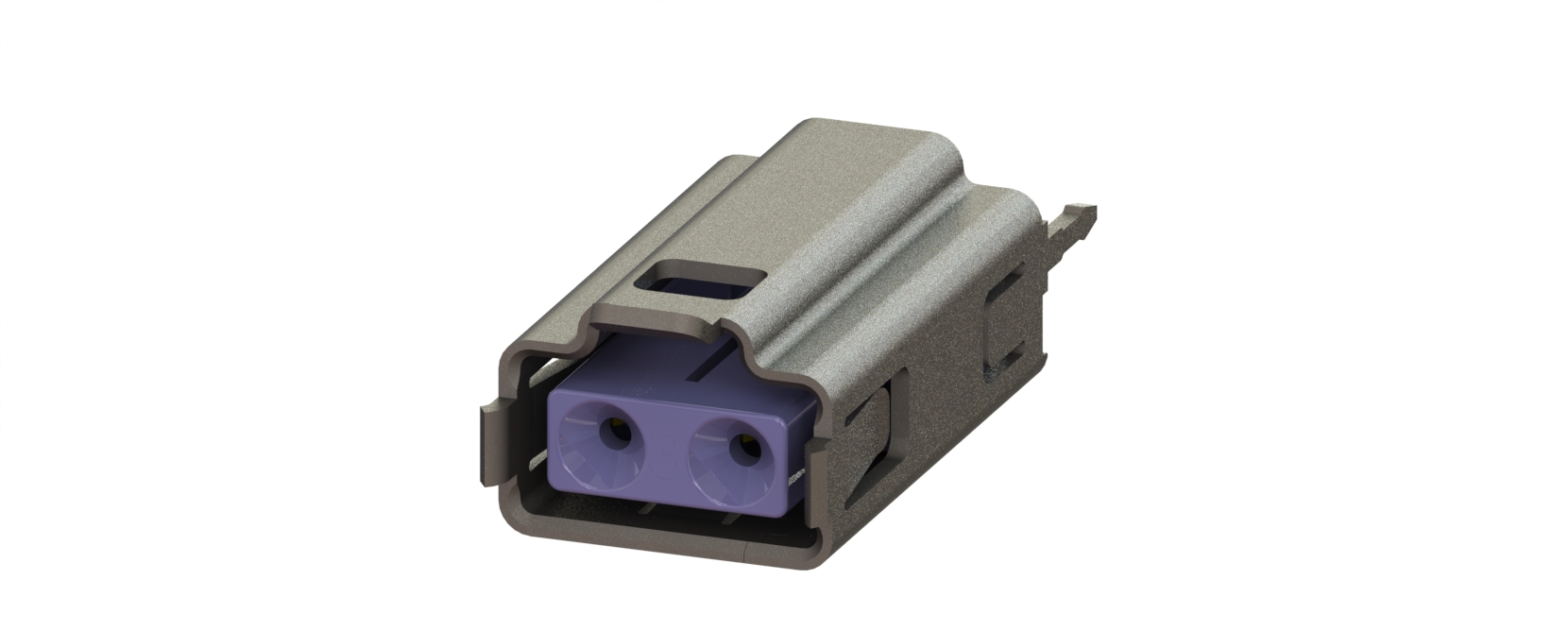

Single Pair Ethernet - Y-SPE - IP20 - Jack 180° - IEC 63171-6

Features

  • Y-SPE6-J1STTFP-01-NOALR1T

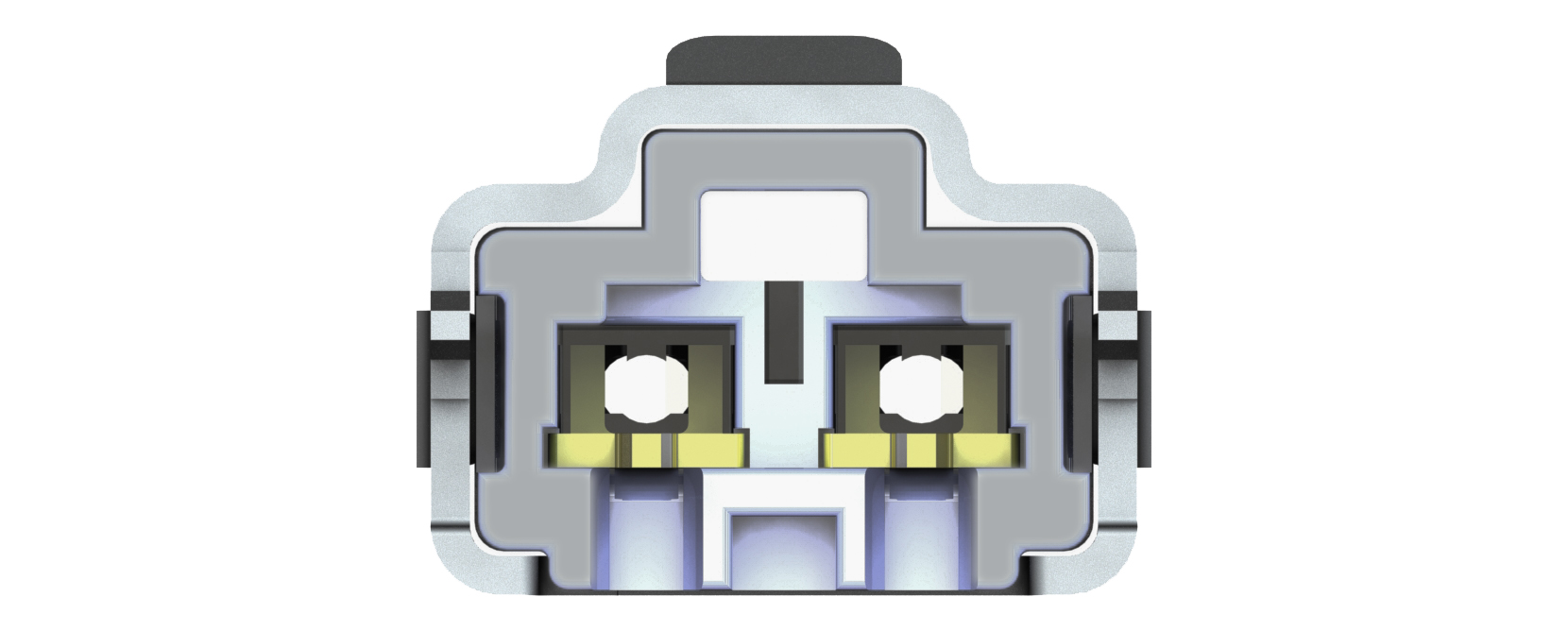

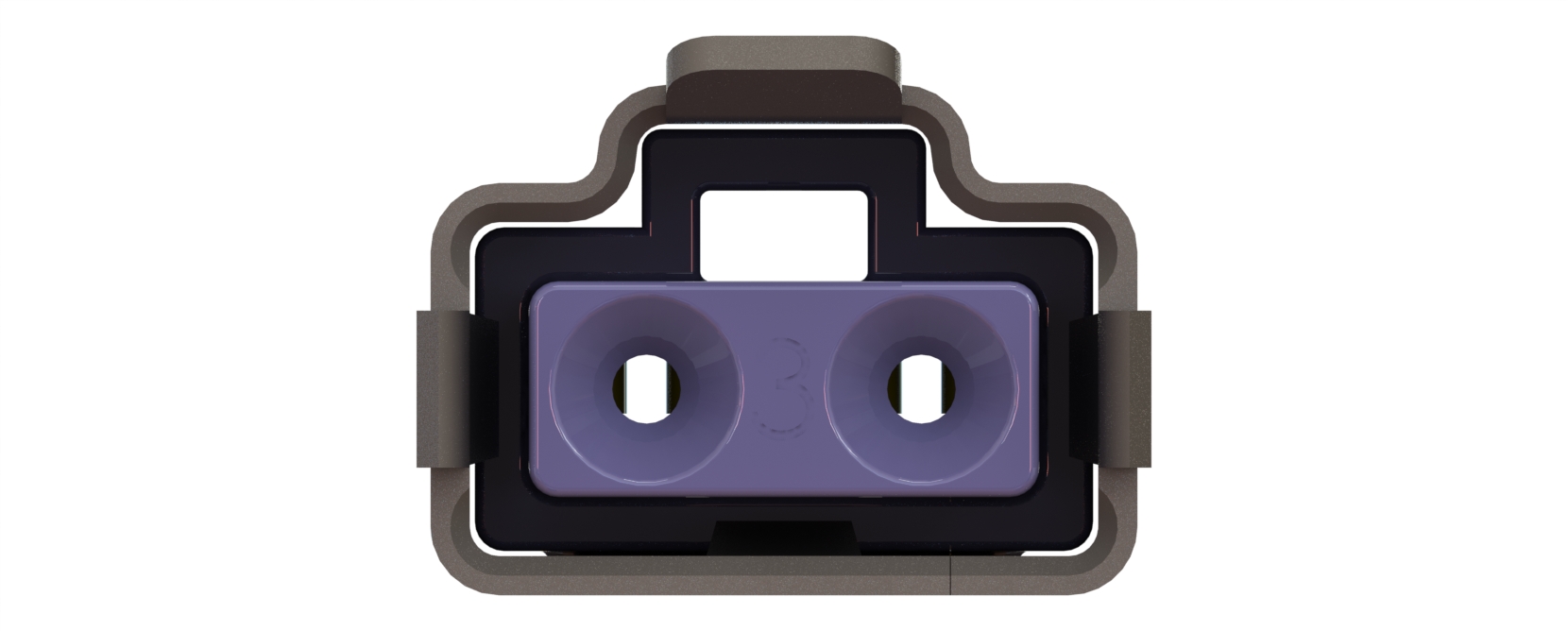

  • Mating face according to IEC 63171-6
  • 180° version for THR soldering
  • Small in size and weight
  • Future oriented technology towards industry 4.0
Dimensioned drawing 3D Model
Request Product

Advantages

  • Future oriented technology as preparation to industry 4.0
  • Both mating faces acc. to IEC 63171-2 / -6 available
  • Saves space cost and weight
  • 90° and 180° Jacks in IP20 and IP67 (IEC 63171-6)
  • 90° Jack (IEC 63171-2)

Specifications

General Specification
  • Mating Cycles
    1,000
  • Operating Temperature Range
    -40 °C – 85 °C
  • Plating type, technology and coating thickness
    In contact area:Min 30μ’’ Au over min 60μ’’ Ni
    In soldering area:Min.80μ’’ Sn over min.60μ’’Ni
  • Packaging
    Tray
  • Contact Type
    Solder
  • IP Class
    IP20
Electrical Specification
  • (Initial) Contact Resistance
    10 Milliohm at 4 A
  • Insulation Resistance
    500 Milliohm at 500
  • (Dieletric) Withstanding Voltage
    1000 V DC for 1 minute pin to pin
  • Current Rating
    4 A 1 minute pin to shield/ground
  • Voltage Rating
    60 V DC
Interface Specification
  • Soldering Technology
    THR & SMD
  • In case of THR or SMD: according to
    J-STD-020D or newer
  • Pitch
    2.8
  • Pin Count / Numbers of pins
    2
  • Contact Type
    Solder
