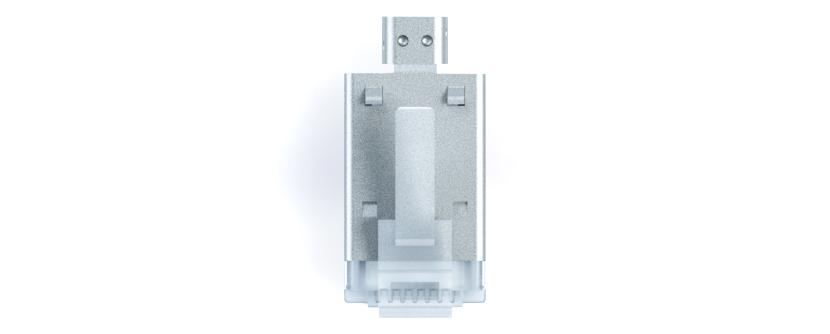

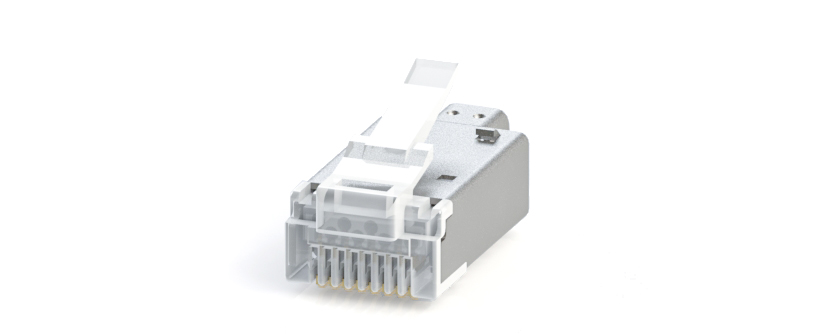

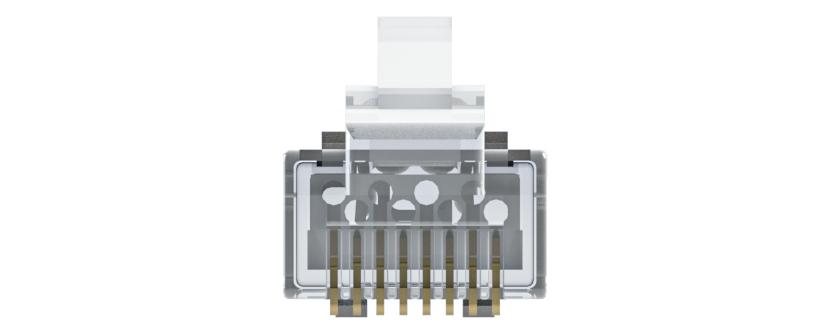

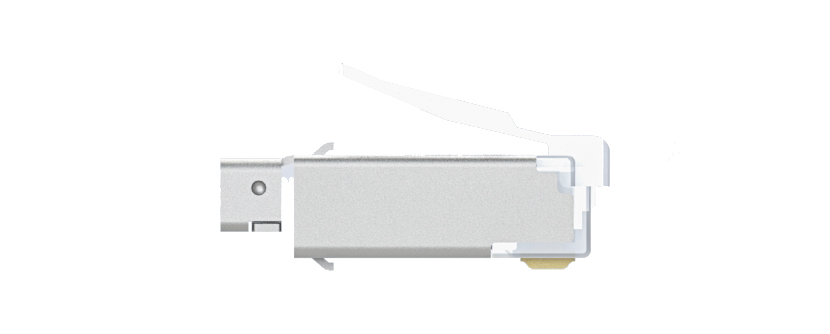

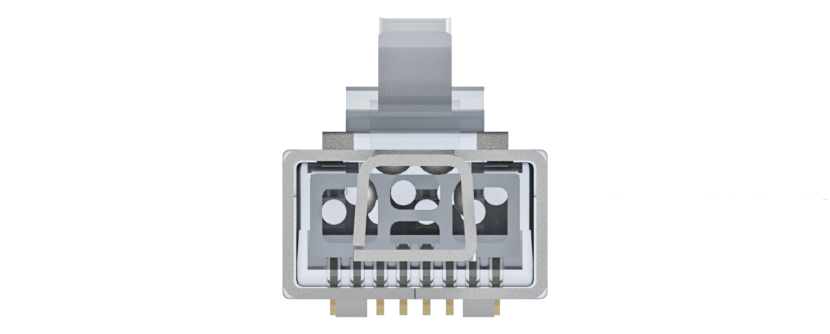

RJ45 - Y-CON - Plug - 8 Signal Contacts - CAT6A

Features

  • Y-CON-P806APCSC-A-T2468
  • RJ45 cable plug Cat6A
  • Shielding with cable crimp preventing cable rotation

Advantages

  • Our Y-Con Plugs are in different variants available:
  • Max. temperature range from -40°C up to 120°C
  • Number of contacts can be chosen according to application
  • Optional additional power contacts up to 3,1 A @ 70°C
  • Square Crimp
  • 1.500 mating cycles
  • Transmission rates up to 10GBit

Specifications

General Specification
  • Mating Cycles
    1,500
  • Operating Temperature Range
    -40 °C – 120 °C
  • Plating type, technology and coating thickness
    - Shielding: min 80u" Ni
    - Contacts: min 30u" Au over min 50u" Ni in Contact area
  • POE
    Yes
  • Contact Type
    Piercing contact
  • IP Class
    IP20
  • Product Compliance
    Reach, RoHS
Electrical Specification
  • (Initial) Contact Resistance
    10 Milliohm
  • Insulation Resistance
    500 Megaohm
  • Voltage Rating
    250 V AC rms
Interface Specification
  • Pitch
    1
  • Pin Count / Numbers of pins
    8
  • Contact Type
    Piercing contact
