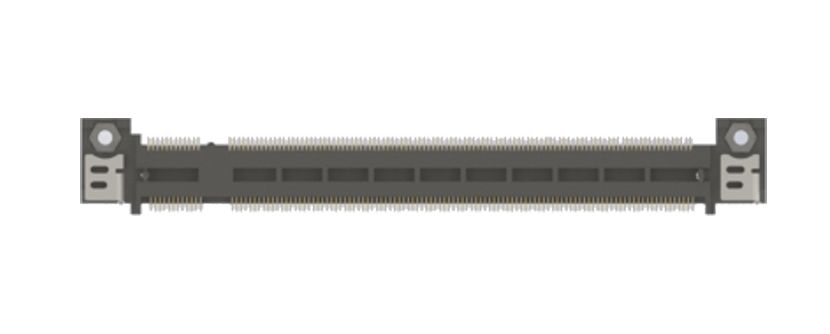

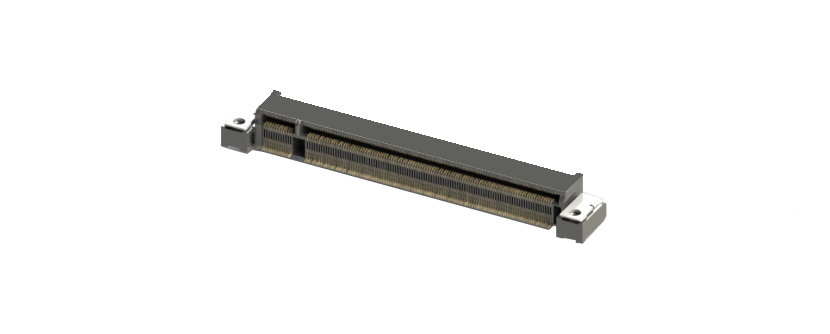

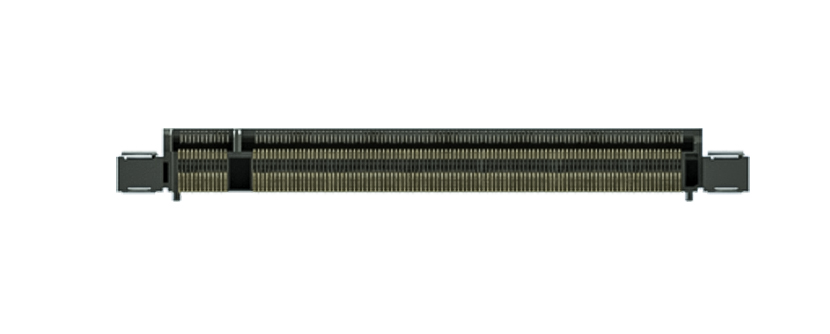

Board Edge Connector MXM1.0 - BEC - 230 pins - 0,3µm AU plating

Features

  • BEC-0.5-230-S9-BF-R-EDC
  • BEC Connector based on Qseven/MXM1.0 standard
  • Designed for use in Automotive and other rough applications
  • Special contact design to ensure function also during shock and vibration
  • With module screwing function
  • 5mm mating height of module
3D Model
Request Product

Advantages

  • BEC and HF301 Series has been developed and tested based on Automotive specifications
  • Special contact designs ensure long live stability during shock, vibrations and environment tough conditions
  • All connectors are produced in IATF16949 certified companies

Specifications

General Specification
  • Mating Cycles
    30
  • Operating Temperature Range
    -40 °C – 85 °C
  • Plating type, technology and coating thickness
    Underplate: NICKEL
    Contact area finish: Gold plating B (15)
    Solder tails area: gold (Au flash)
  • Packaging
    Tape and Reel
  • Product Compliance
    Reach, RoHS
Electrical Specification
  • (Initial) Contact Resistance
    40 Milliohm
  • Insulation Resistance
    250 Megaohm at 500
  • (Dieletric) Withstanding Voltage
    500 V AC for 1 minute
  • Voltage Rating
    50 V DC
Interface Specification
  • Pin Count / Numbers of pins
    230
