- Clamshell CMT solution
- Suitable for BGA and LGA packages with 0.40 mm pitch
- U-shape or double bow contact structure
EN

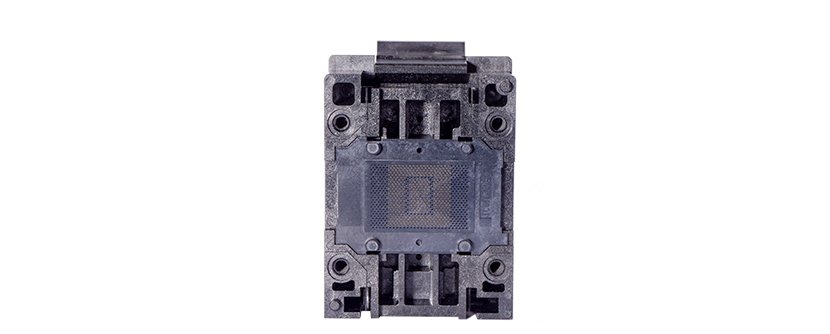

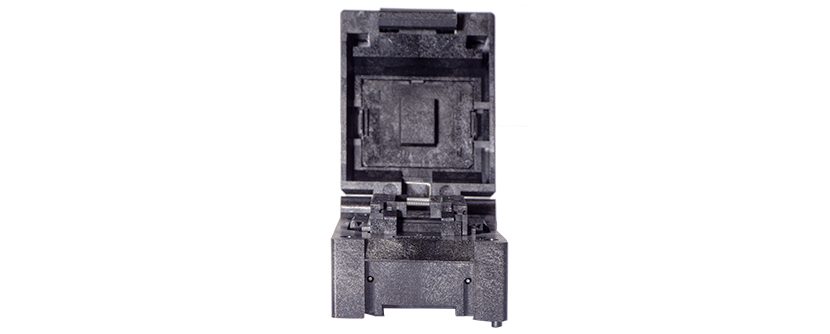

IC511-Series - Clamshell
Features
Advantages
- Compact solution suitable in manual applications
- Suitable for different kind of depopulation
- Stamped contact type
Specifications
General Specification
- Mating Cycles
10,000 - Operating Temperature Range
-40 °C – 150 °C
Electrical Specification
- (Initial) Contact Resistance
100 Milliohm - Insulation Resistance
1000 Megaohm - (Dieletric) Withstanding Voltage
100 V AC - Current Rating
1 A
Interface Specification
- Pitch
0.4 - Pin Count / Numbers of pins
500
