- Y-ConPlug-31
- RJ45 cable plug
- With integrated wire guide, shielding and cable crimp preventing cable rotation
- With power contacts
EN

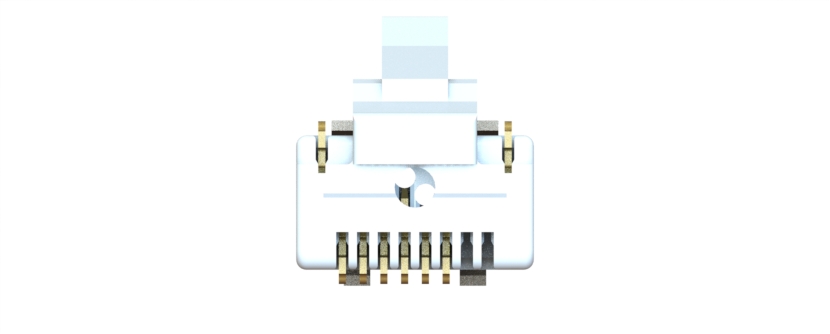

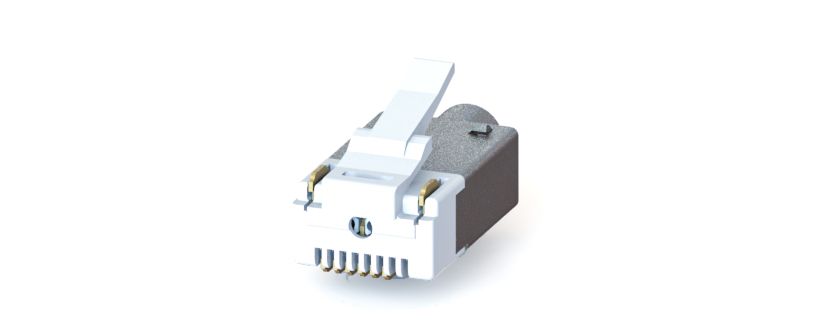

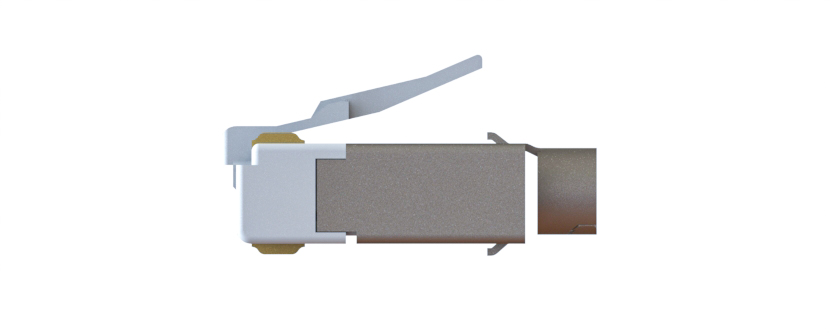

RJ45 - Y-CON - Plug - 6 Signal / 2 Power Contacts
Features
Advantages
- Our Y-Con Plugs are in different variants available:
- Max. temperature range from -40°C up to 120°C
- Number of contacts can be chosen according to application
- Optional additional power contacts up to 3,1 A @ 70°C
- Square Crimp
- 1.500 mating cycles
- Transmission rates up to 10GBit
Specifications
General Specification
- Mating Cycles
1,500 - Operating Temperature Range
-40 °C – 120 °C - Plating type, technology and coating thickness
- Shielding: Nickel plated brass
- Contact area: 30µ”Au over Ni - POE
No - Contact Type
Piercing contact - IP Class
IP20 - Product Compliance
Reach, RoHS
Electrical Specification
- Current Rating
2,1 A
Interface Specification
- Pitch
1 - Pin Count / Numbers of pins
6 - Contact Type
Piercing contact
