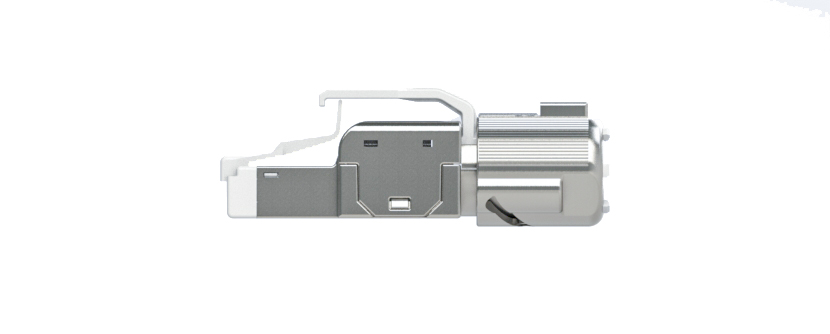

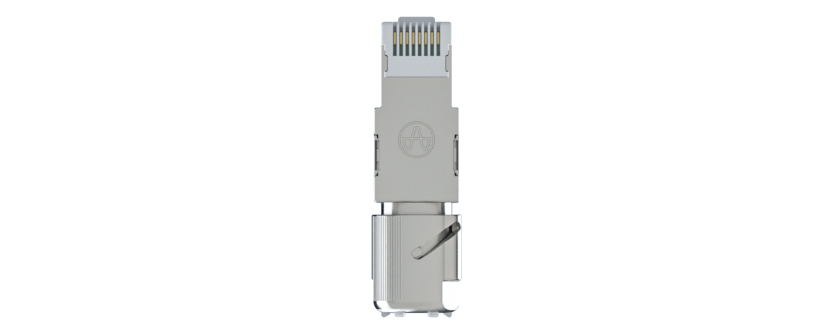

- Y-CONPROFIXPLUG-53
- RJ45 cable plug CAT5
- Integrated wire guide
- Tool-free field assembly
EN
RJ45 - Y-CON IP20 - Profix-Plug - Tool Free Assembly - CAT5
Features
Advantages
- Our Y-Con Plugs are in different variants available:
- Max. temperature range from -40°C up to 120°C
- Number of contacts can be chosen according to application
- Optional additional power contacts up to 3,1 A @ 70°C
- Square Crimp
- 1.500 mating cycles
- Transmission rates up to 10GBit
Specifications
General Specification
- Mating Cycles
1,500 - Operating Temperature Range
-40 °C – 120 °C - Plating type, technology and coating thickness
- Die Cast : 8-12 um Cu ; 4-8 um Ni
- Shield: min 1.27 um (50 u") Ni
- Signal & Power Contacts:
* Min 30 u" Au over min 50 u" Ni in Contact area
*Min 80u" Sn over min 50u" Ni in Solder area
- IDC Contacts: 2 um (80u") Sn over min 1.27 um (50u") Ni - Packaging
Plastic Bag with 3 sections - POE
yes - Contact Type
IDC - IP Class
IP20 - Product Compliance
Reach, RoHS
Electrical Specification
- (Initial) Contact Resistance
20 Milliohm - Insulation Resistance
500 Megaohm - (Dieletric) Withstanding Voltage
1000 VDC or VAC peak for 1 minute pin to pin - Current Rating
2,1 A 1 minute pin to shield/ground
Interface Specification
- Pitch
1 - Pin Count / Numbers of pins
10 - Contact Type
IDC
