- CN109S-022-0001
- Host Connector
- 56Gbps NRZ
- 112Gbps PAM-4 per diff. pair
EN

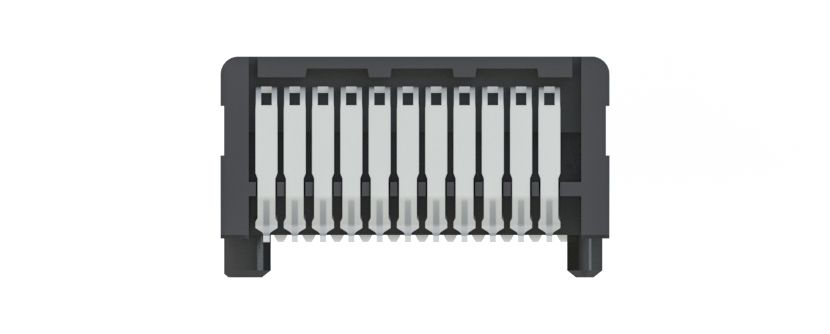

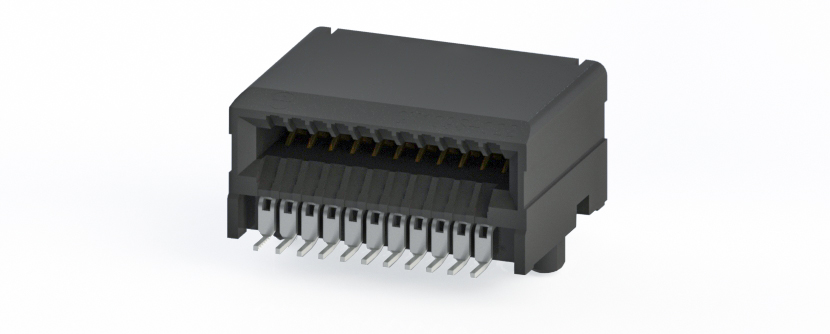

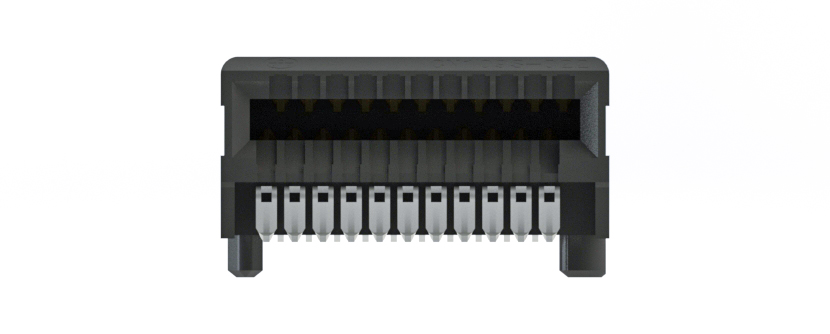

DSFP / NGSFP Host Connector
Features
Advantages
- 2 x 112G/ch – same size as SFP but 2 channels
- Up to 200GbE per slot
- Double channel vs. single channel when compared to SFP
- 56Gbps NRZ and 112Gbps PAM-4 per diff. pair
- Same outer dimension as SFP
- SFP area size compatibility (same occupied area on the board)
- SFP mechanical parts compatibility (all custom-made mechanical parts can be used)
- MSA established
- High volume mass production
- Acc. to OIF CEI-112G-PAM4-VSR (latest draft)
Specifications
General Specification
- Mating Cycles
100 - Operating Temperature Range
-20 °C – 85 °C - Plating type, technology and coating thickness
Contact Plating 01 = 0.76 µm Au - Packaging
750 pcs. / Reel - Product Compliance
Reach, RoHS
Electrical Specification
- (Initial) Contact Resistance
35 Milliohm at 100 - Voltage Rating
120 V AC
Interface Specification
- Pin Count / Numbers of pins
22
