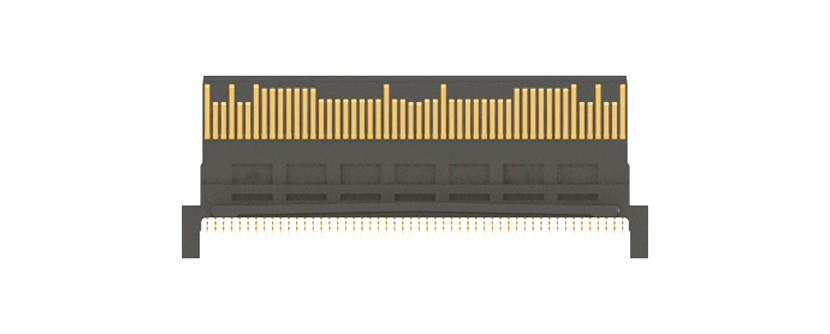

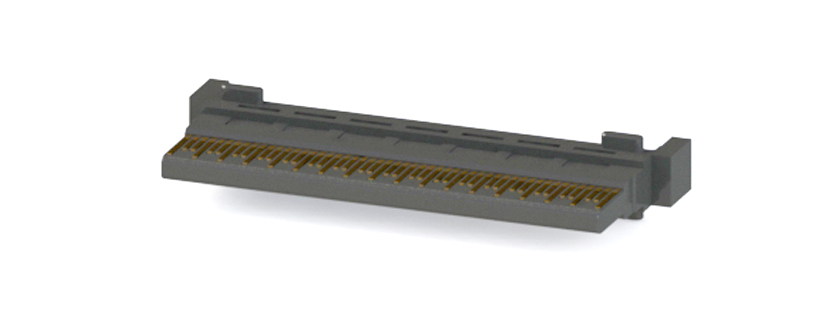

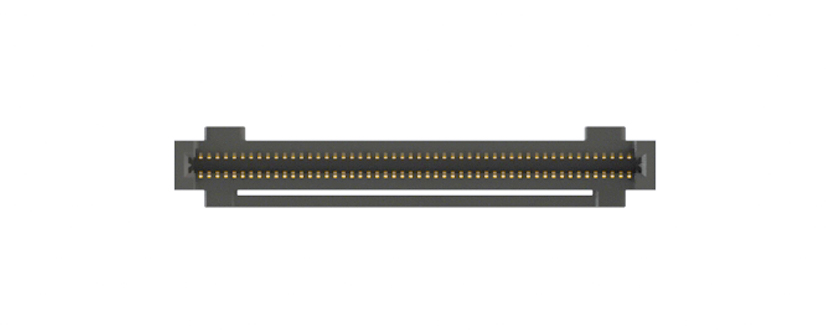

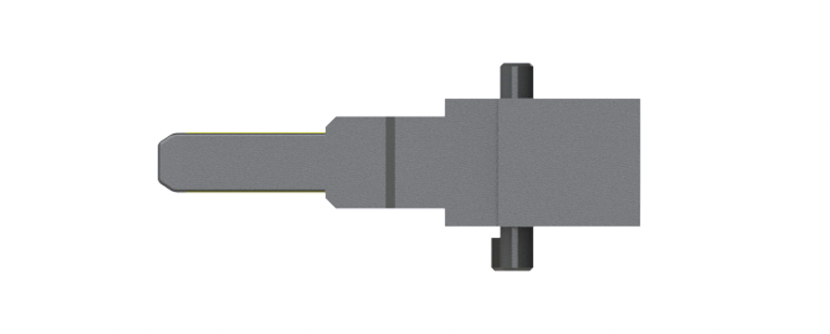

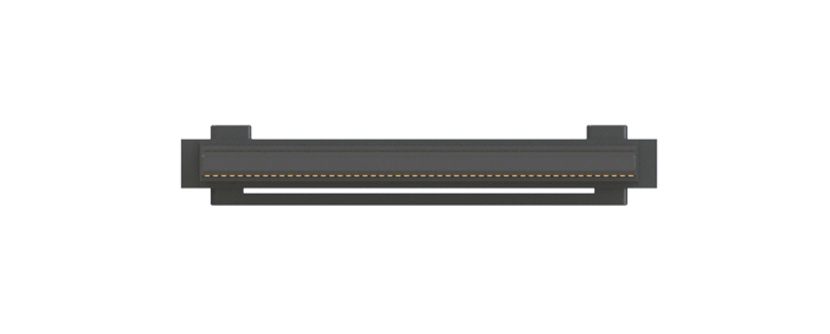

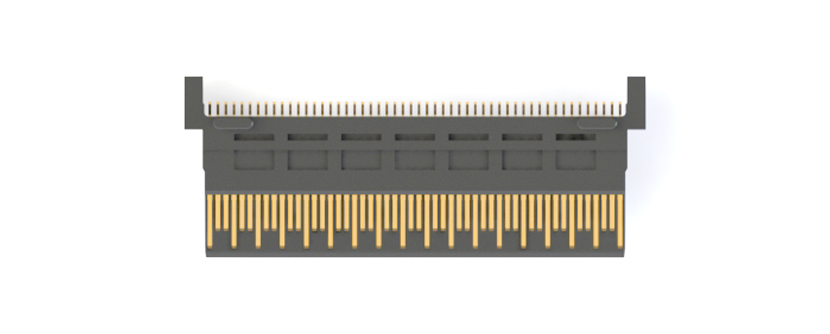

CFP2 Plug Connector – 28G

Features

  • CN121P-104-0003
  • Plug Connector
  • With Crushrib
  • 28G
Dimensioned drawing 3D Model
Request Product

Advantages

  • Up to 112G PAM4/64G-NRZ/56G-NRZ per differential pair
  • Current Capacity up to 2.2A for latest generation of DCO
  • Connector, plug and mechanical sets available
  • Custom-made cages and heat sinks with heat pipes for better heat dissipation or reduced dimension
  • Supports Belly-to-Belly Mount design
  • Single and Dual-Port designs

Specifications

General Specification
  • Mating Cycles
    200
  • Operating Temperature Range
    -55 °C – 85 °C
  • Product Compliance
    Reach, RoHS
Electrical Specification
  • (Initial) Contact Resistance
    10 Milliohm
  • Voltage Rating
    31 V AC
Interface Specification
  • Pin Count / Numbers of pins
    104

Download

Data Networking Catalogue
CFP2 Pluggable Module Connector
