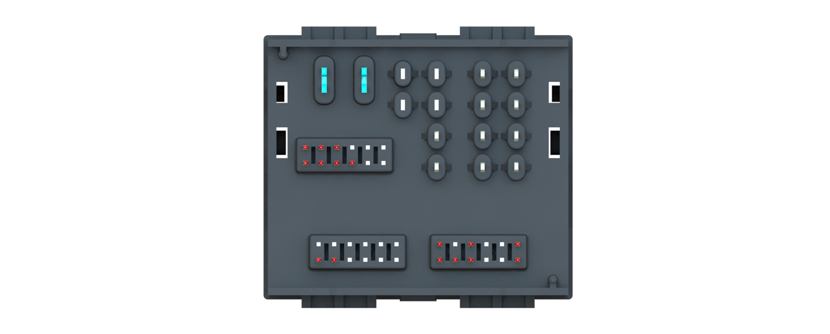

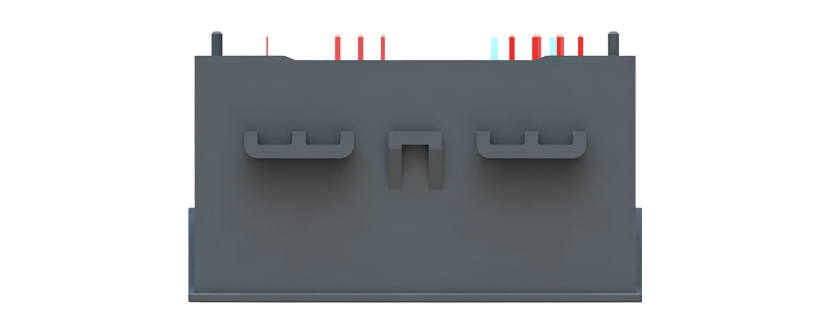

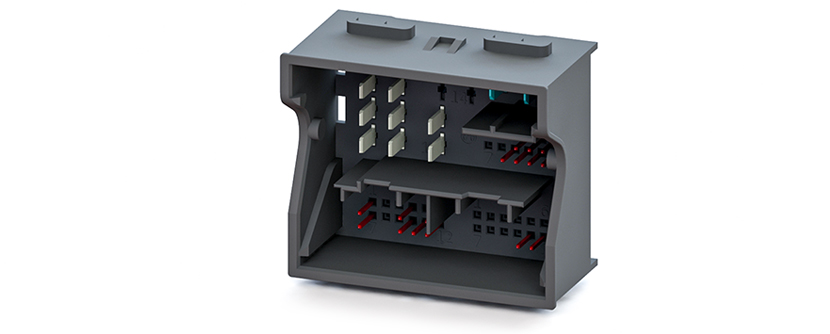

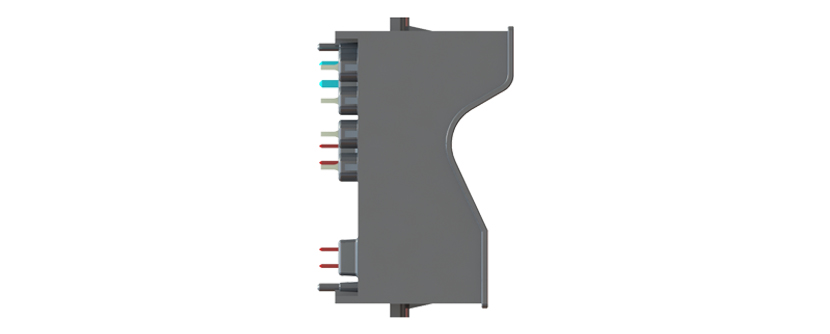

Quadlock Connector - Y-QUAD - 180° - 52 pins

Features

  • Y-QLS-52P-LL-THX1-P-EDC
  • Y-QUAD Series available for Wave and Reflow Soldering
  • Different number of contacts on request
  • Automotive Certified
Dimensioned drawing 3D Model
Request Product

Advantages

  • Space saving design in regards to connector size and PCB layout
  • Other pin counts are available on request
  • Wave soldering or Reflow soldering version (Pin&Paste)
  • RoHS2011/65/EU

Specifications

General Specification
  • Operating Temperature Range
    -40 °C – 85 °C
  • Plating type, technology and coating thickness
    Contacts: Copper Alloy
    Plating: Tin
  • Packaging
    Tray
  • Product Compliance
    Reach, RoHS
Interface Specification
  • Pin Count / Numbers of pins
    52
