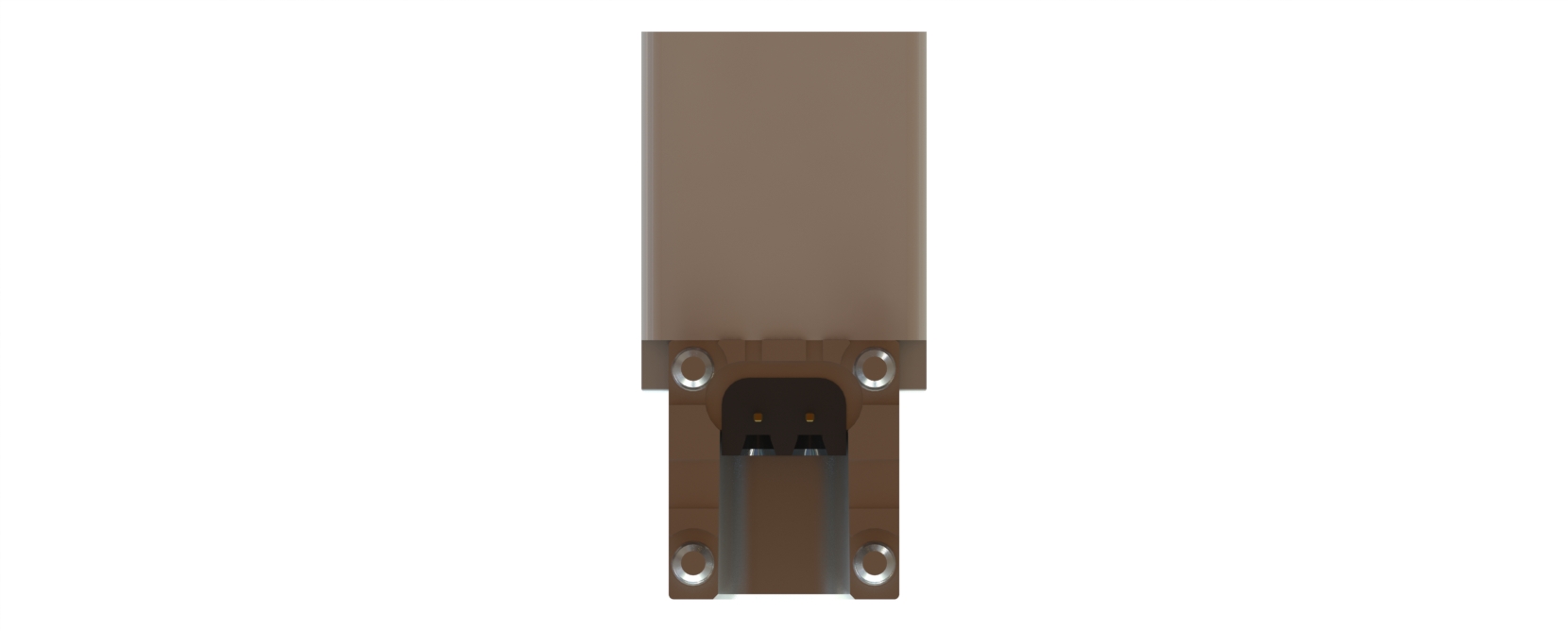

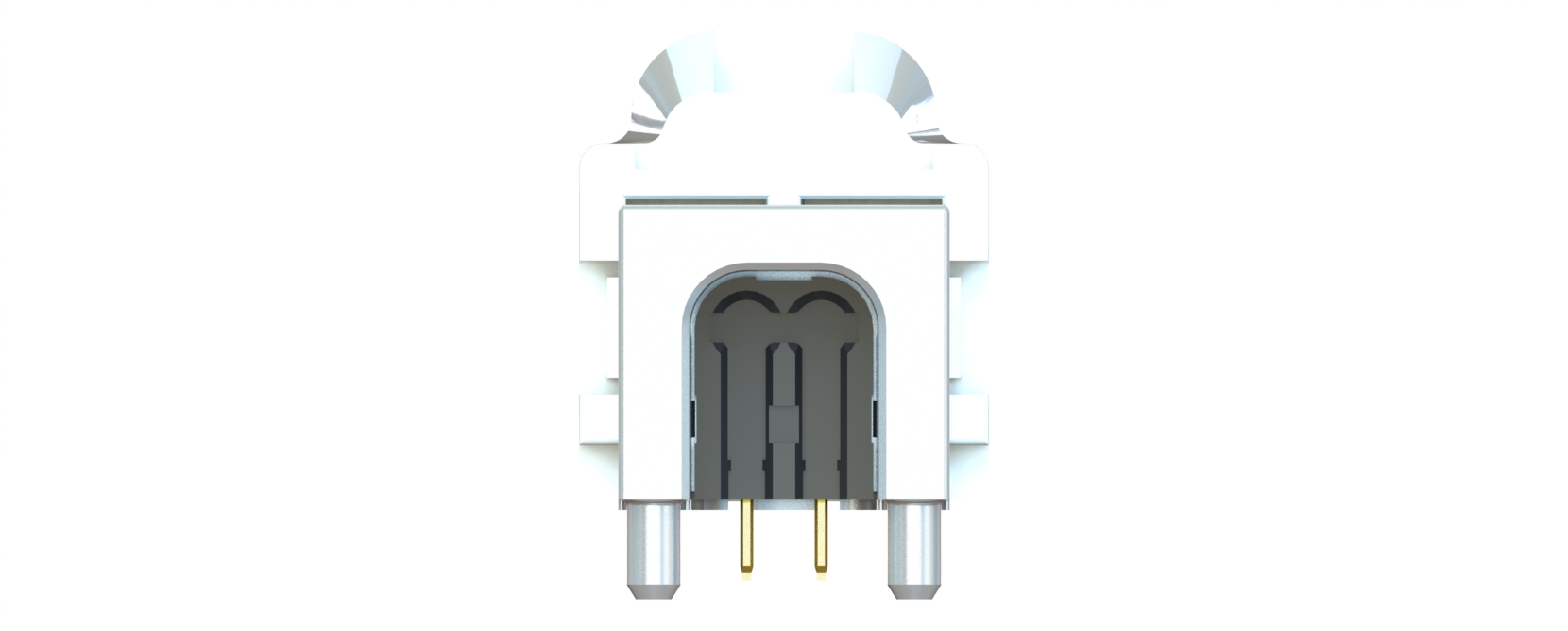

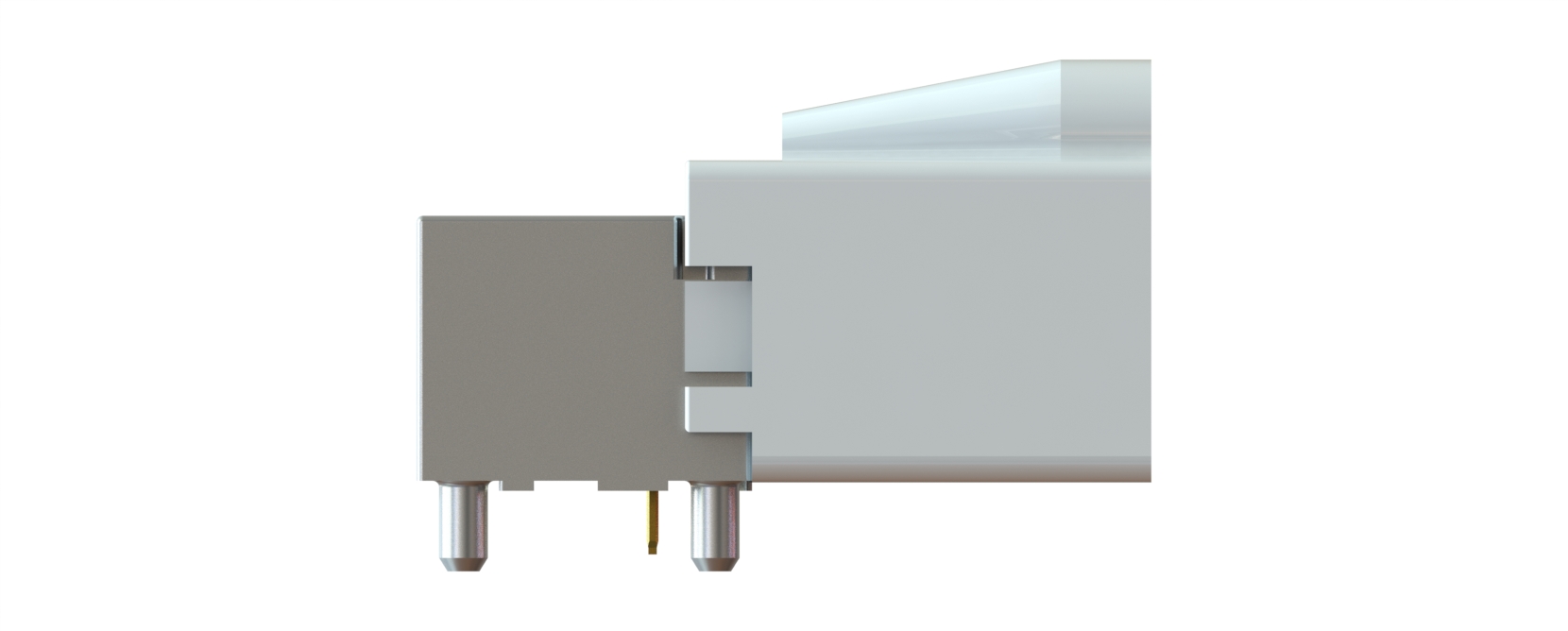

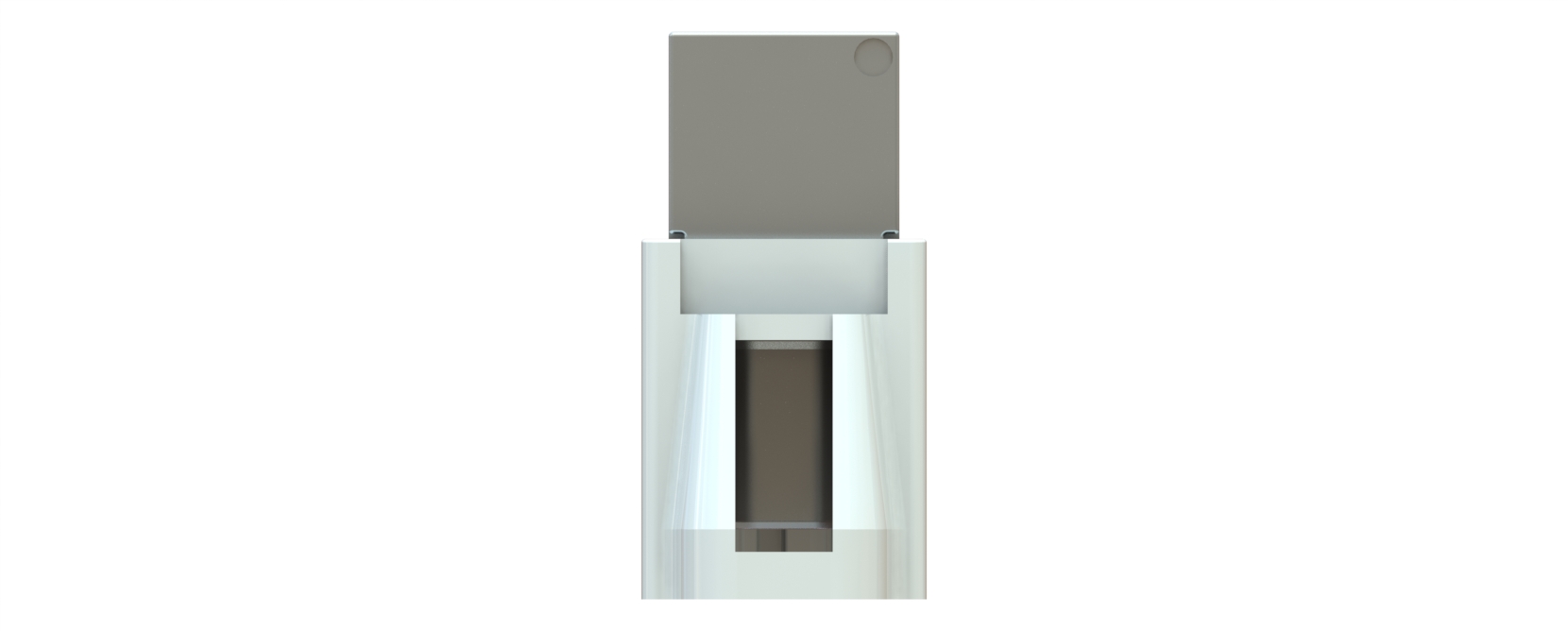

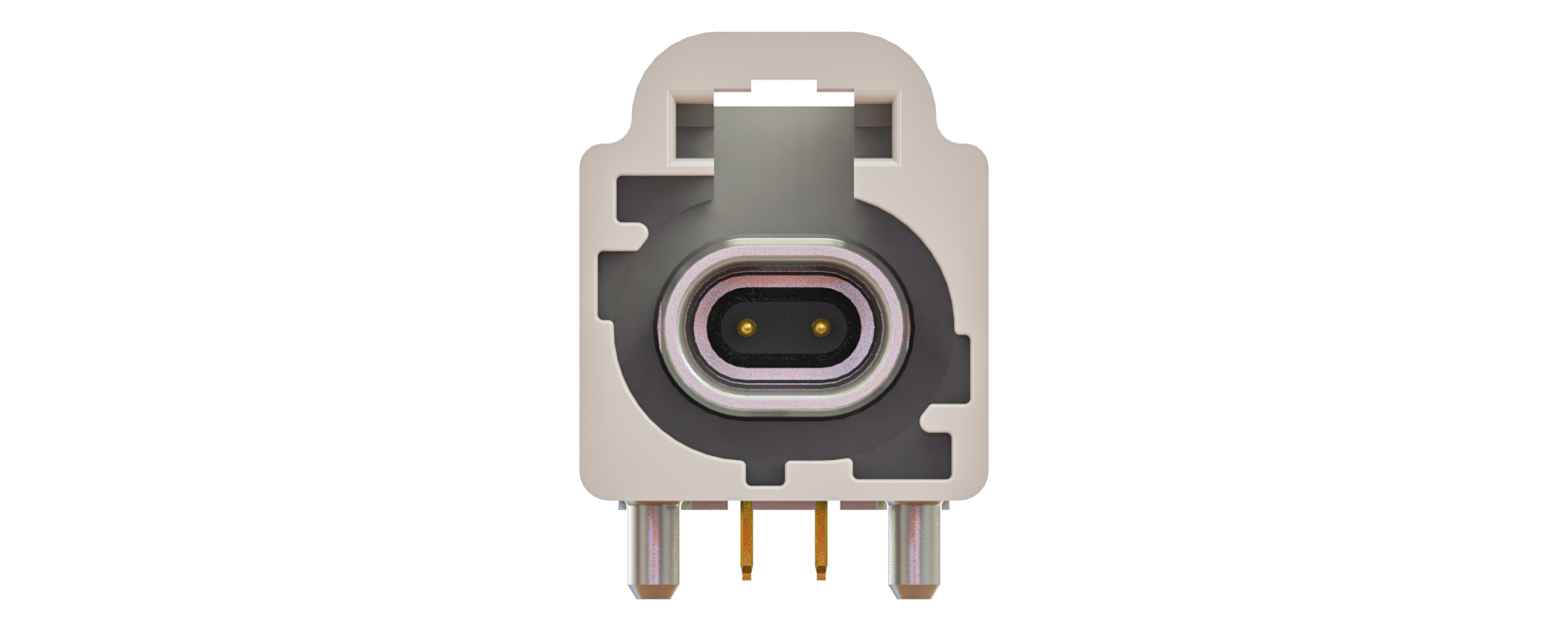

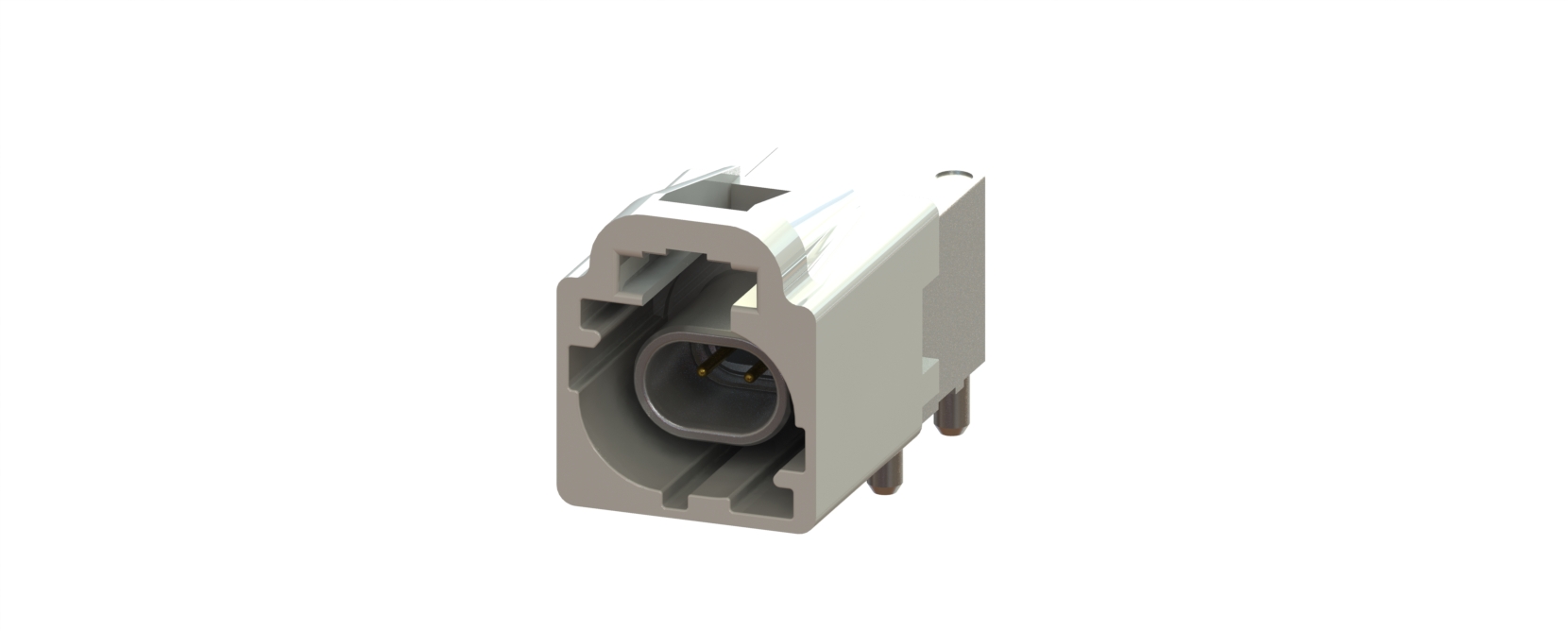

- HF116P-1001-0B-VE
- Y-HDE High Speed Data Ethernet Connector Series
- Single Type Version with two contacts
- Coding B - mechanical and colour coding
EN
Y-HDE Single Type – Coding B
Features
Advantages
- 7 different codings of the single-type version
- Data transmission up to 20Gbps
- Weight and space saving design
- Tested and produced for automotive applications
- Quad and double version on request
Specifications
General Specification
- Mating Cycles
25 - Operating Temperature Range
-40 °C – 105 °C - Plating type, technology and coating thickness
Mating area: Au flash over Ni
Solder area: Sn over Ni - Packaging
Tape and reel
Electrical Specification
- (Initial) Contact Resistance
10 Milliohm at 10 mA - Insulation Resistance
100 Megaohm at 500 - (Dieletric) Withstanding Voltage
250 V AC rms for 1 minute - Current Rating
1.5 A 1 minute - Voltage Rating
100 V AC rms
Interface Specification
- Pitch
2 - Pin Count / Numbers of pins
2
