- FMS008-6001-0
- Top mount version
- With card detection switch
- Low profile design with 1,5mm heigth
- EMI prevention design
- Witch 8 contacts
EN

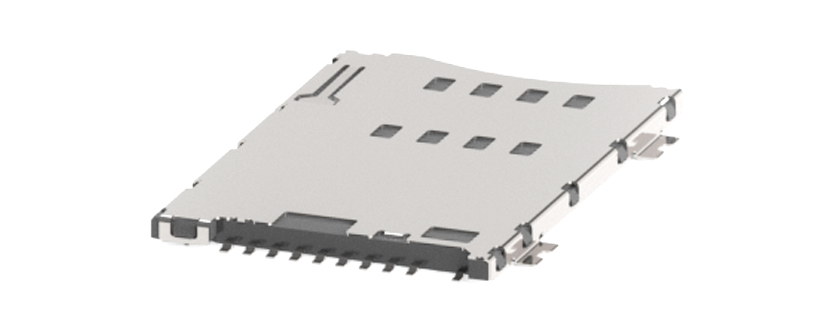

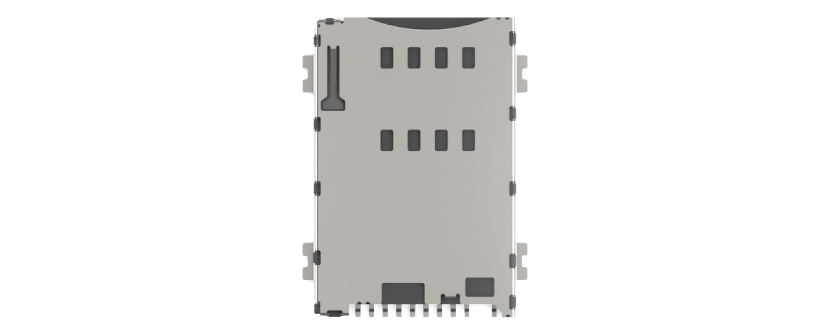

SIM Card Connector - push/push type - 8 contacts
Features
Advantages
- Various unlocking techniques such as push/push, push/lock or tray type
- Optional with or without card presence switch
- Mounting version for top and bottom of the PCB
Specifications
General Specification
- Mating Cycles
5,000 - Operating Temperature Range
-55 °C – 85 °C - Plating type, technology and coating thickness
Contact : Copper Alloy, Ni-Au - Packaging
Tape and reel - Product Compliance
Reach, RoHS
Electrical Specification
- (Initial) Contact Resistance
100 Milliohm at 1 mA - Insulation Resistance
1000 Megaohm at 500 - (Dieletric) Withstanding Voltage
500 pin to shield / ground for 1 minute pin to pin - Voltage Rating
5 V AC rms
