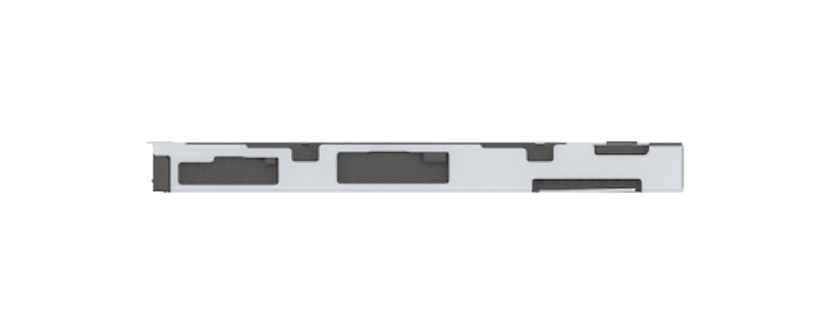

SD Card Connector - push/push type - reversed

Features

  • FPS009-2960-0
  • With card detection switch
  • SDIO capable
  • EMI prevention design
  • Low height with 2,85mm
Dimensioned drawing 3D Model
Request Product

Advantages

  • Various removal/unlocking techniques such as manual, push/push or push/lock
  • Mounting version for top and bottom of the PCB
  • Special automotive versions with extended temperature range from -40° to 105°

Specifications

General Specification
  • Mating Cycles
    10,000
  • Operating Temperature Range
    -25 °C – 85 °C
  • Plating type, technology and coating thickness
    Contact area:Ni-Au
    Solder tail: Ni-Sn
  • Packaging
    Tape and reel
  • Product Compliance
    Reach, RoHS
Electrical Specification
  • (Initial) Contact Resistance
    100 Milliohm at 1 mA
  • Insulation Resistance
    1 Megaohm at 500
  • (Dieletric) Withstanding Voltage
    500 pin to shield / ground for 1 minute pin to pin
  • Voltage Rating
    5 V AC rms
