- FUS006-3210-0
- Reversed mount type
- One connector is usable for Nano- and Micro Sim tray
- Low profile design with 1,35mm height
- Card mis insertion design
EN

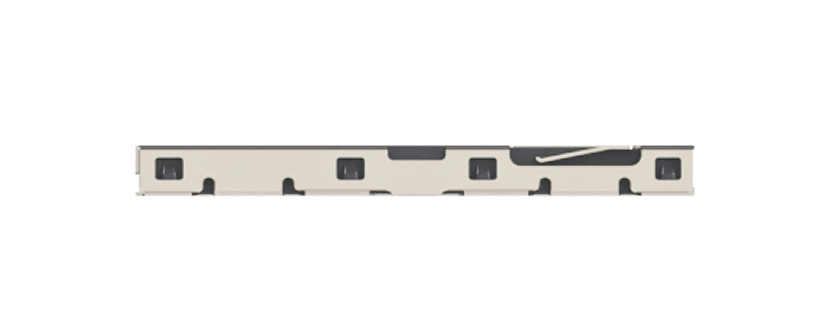

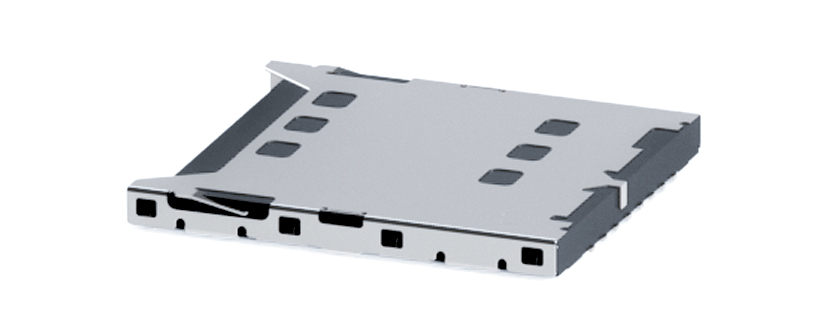

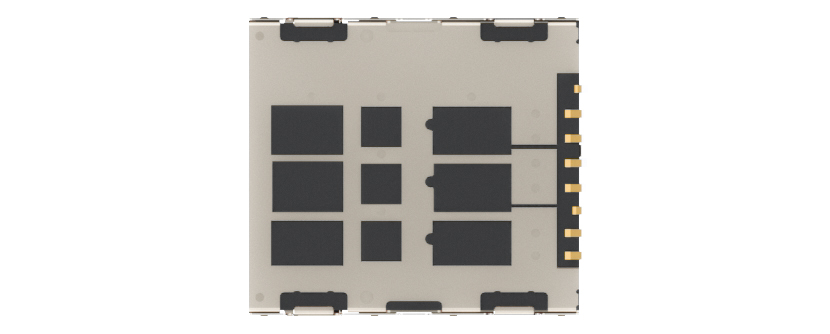

Micro Nano SIM Card Connector - tray type
Features
Advantages
- Yamaichi Electronics offers the right SIM card connector for all common card formats
- Various unlocking techniques such as push/pull or tray type
- Mounting version for top and bottom of the PCB
Specifications
General Specification
- Mating Cycles
5,000 - Operating Temperature Range
-25 °C – 85 °C - Plating type, technology and coating thickness
Contact : Copper Alloy,
t = 0.12, Ni-Au - Product Compliance
Reach, RoHS
Electrical Specification
- (Initial) Contact Resistance
100 Milliohm at 1 - Insulation Resistance
500 Megaohm - Voltage Rating
5 V AC rms
