- PJS008-4100-0-VE
- Top mount version
- Automotive version
- Especially tested for rough enviroment
- Hard locking function
- Two point contacts
EN

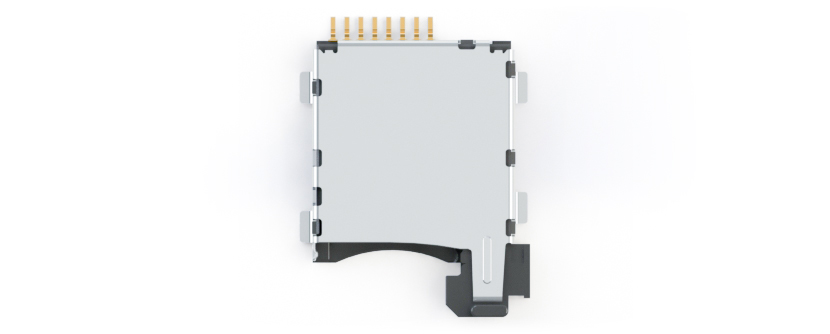

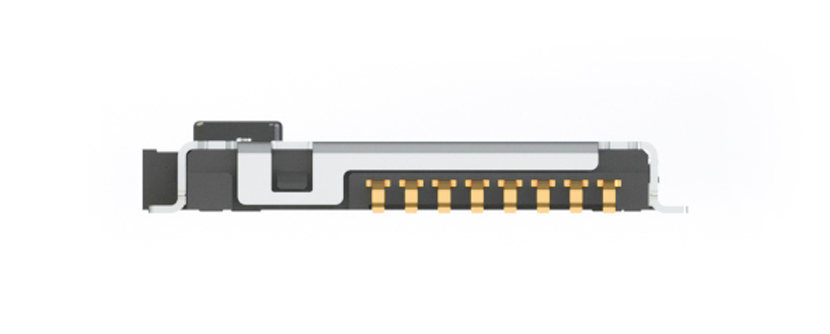

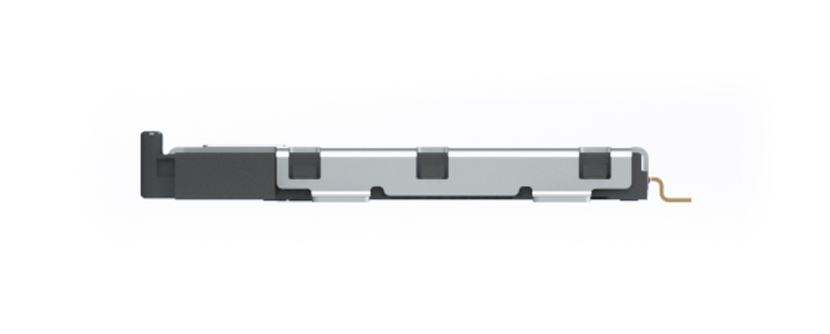

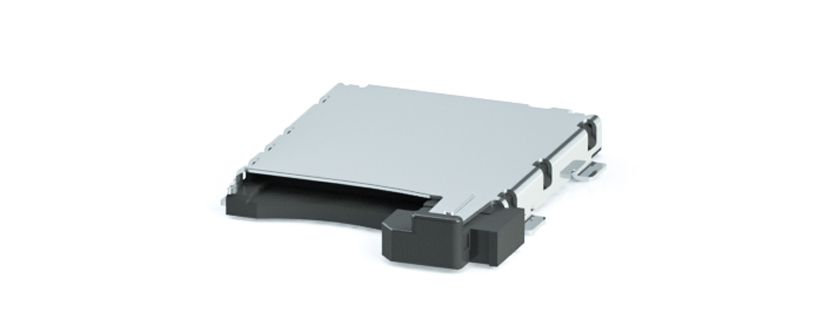

Micro SD Card Connector - hard lock type
Features
Advantages
- Various removal/unlocking techniques such as manual, push/push or push/lock
- Mounting version for top and bottom of the PCB
Specifications
General Specification
- Mating Cycles
30 - Operating Temperature Range
-25 °C – 85 °C - Plating type, technology and coating thickness
Copper Alloy, Ni-Au - Product Compliance
Reach, RoHS
Electrical Specification
- (Initial) Contact Resistance
100 Milliohm at 1 mA - Insulation Resistance
1 Megaohm at 500 - (Dieletric) Withstanding Voltage
500 pin to shield / ground for 1 minute pin to pin - Voltage Rating
50 V AC rms
