M12 Push-Pull circular connector Y-Circ M: Order your free sample now!


Tight is right: Also for our M12 circular connectors Y-Circ M. The Push-Pull variant with internal locking of the M12 connector is the first M12 Push-Pull design to be implemented in an international standard (IEC 61076-2-012).

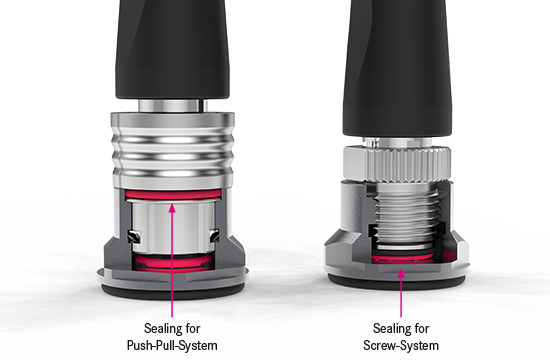

Thanks to the connector's innovative, independent sealing system, both the socket and the mating connector have their own O-rings to ensure an effective seal. Switching between push-pull and screw locking is guaranteed by the manufacturer without compromising on tightness for up to 100 specified mating cycles - even when changing locking types. See for yourself and request your free sample of the Y-Circ M12:

GET YOUR FREE SAMPLE HERE

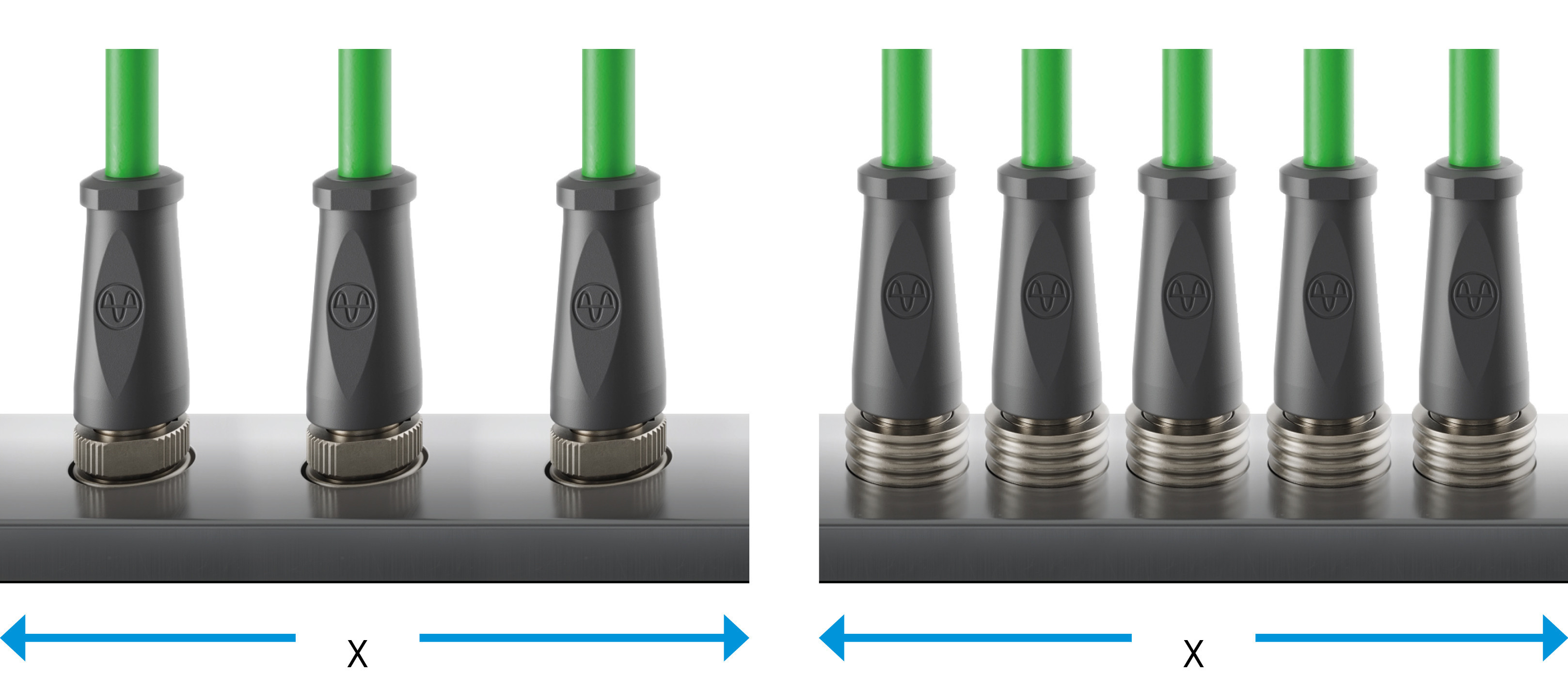

Space-saving: Less space requirement as standard M12

X = Identitical tree space

The innovative locking mechanism allows limited installation space to be optimally utilised. The higher possible packing density means that more connectors can be accommodated in the same installation space. In addition, the Push-Pull connector is no larger in size than a connector with a screw variant.

To save even more space, the sockets could be arranged in a row to save even more space, as unlocking does not necessarily require installation space for manual access. In this case, the push-pull mechanism can also be unlocked using an unlocking aid.

Order your free sample

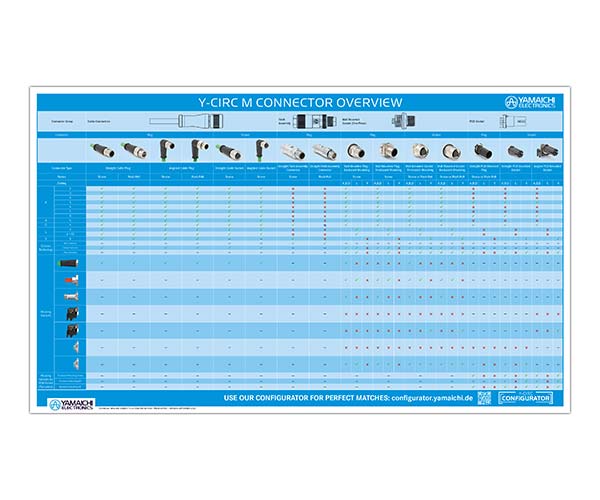

More Informations about the Y-Circ M Circular Connector Series:
